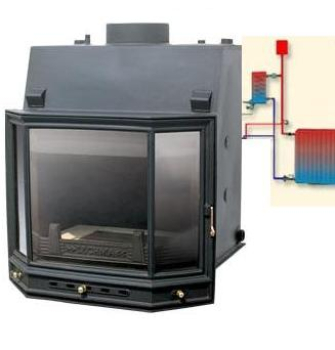

Water-led chimney insert with 14,9 KW of achievement,

water-led chimney insert , with Prismati disk (divided), as exclusive heating or for the connection to the warm water central heating and custom water heater. Knisterndes a wood fire, the visible play of the flames and the natural warmth. A fire-place produces a completely special atmosphere.

By the burn of wood, a regenerating raw material, which burns cleanly and CO2-neutral, the fire-place is a clean and environmentalcareful alternative to gas or oil heatings. The fire-place heating employment connects the delightful Ambiente of a fire-place with the amount of heat of a boiler. The special at this chimney insert is the heating space completely umschlossene of the boiler coat and the additional water heating up in the cathedral over the combustion chamber, whereby a considerable increase of the efficiency is reached. If you do not only want to heat your living room with a fire-place, but also into your central heating to feed you would like, can the warmth this with this chimney insert.


Advantages: The wide window, over air circulates (disk flushing), to connection to the central heating. Equipment: with a casting rust and a sturdy ash drawer, Schamottsteine of ring around the boiler grate. The fire-place body is made of solid boiler steel in a strength of 4-5 mm. Behind the fire-place door is a stable ash container. Heatable surface water-laterally max.110 m². air-laterally max.40 m². Scheitholzlaenge: 60 cm.

Optionally:

Safety heat exchanger, is a Rohrsytem in the boiler coat, by this can during overheating cold water be led (e.g. frame with pump loss or power failure) around the chimney insert to cool down. Not to confound with a heat exchanger, it is a pure zusaetzlichres safety member and is independent an extra cycle, of the heating water circle.

Air connection of upside (diameter 100 mm), makes the room air-independent possible operated the fire-place, importantly with small space volume, since the oxygen is not extracted from the setting up area. The additional advantage is that cold outside air directly into the fire-place is led and so the setting up area is not inadvertently cooled down. These options are inserted ex factory, cannot not be re-tooled and bought also not individually, if them wish these please in the option choice mark.
